Winch Components and Marine Parts



Winch Drums/Crane Drums/Conveyor Roller Drum/Conveyor Steel Pulley Drum

GT Winch Machinery offers high-quality winch drums for lifting and pulling applications. Durable, precision-engineered, and customizable to meet your needs. Explore our winch drum solutions today!

Free Inquiry

A winch drum is a cylindrical component central to winch systems, designed to spool and manage cables, ropes, or chains during lifting, pulling, or towing operations. It ensures controlled tension distribution and smooth operation under heavy loads. At GT Winch Machinery, we engineer winch drums for durability, precision, and adaptability across diverse industrial environments.We produce general winches,construction winches,marine winches.etc

Applications of Winch Drums

Winch drums are integral to industries requiring robust material handling:

  1. Construction & Mining: Heavy-duty lifting of equipment and materials.
  2. Marine & Offshore: Anchoring, mooring, and towing in corrosive environments.
  3. Forestry & Agriculture: Logging, land clearing, and equipment maneuvering.
  4. Rescue Operations: Emergency recovery and load management.
  5. Energy Sector: Cable management in wind turbines and oil rigs

Materials for Winch Drums

Material selection depends on load capacity, environmental conditions, and operational lifespan:

  • Carbon Steel: High strength-to-weight ratio for general industrial use.
  • Stainless Steel: Corrosion resistance for marine and offshore applications.
  • Alloy Steel: Enhanced durability for extreme loads (e.g., mining).
  • Composite Coatings: Anti-abrasive coating (e.g., zinc plating) to prolong service life

Applications for Winch Drums

rope drum for crane
heavy duty steel drum



Technical Parameters Table

Below are standard specifications for GT Winch Drums (customizable upon request):

Parameter Specifications
Drum Diameter 200–1,500 mm
Drum Length 500–5,000 mm
Load Capacity 1–500 tons
Material Grade ASTM A36, SS304/316, Alloy Steel (4140/4340)
Surface Treatment Galvanized, Epoxy Coated, or Powder Coated
Flange Design Reinforced flanges for lateral load support
Compliance Standards ISO 4301, DIN 15020, CE Certified
crane drum under production

crane/winch drum under production

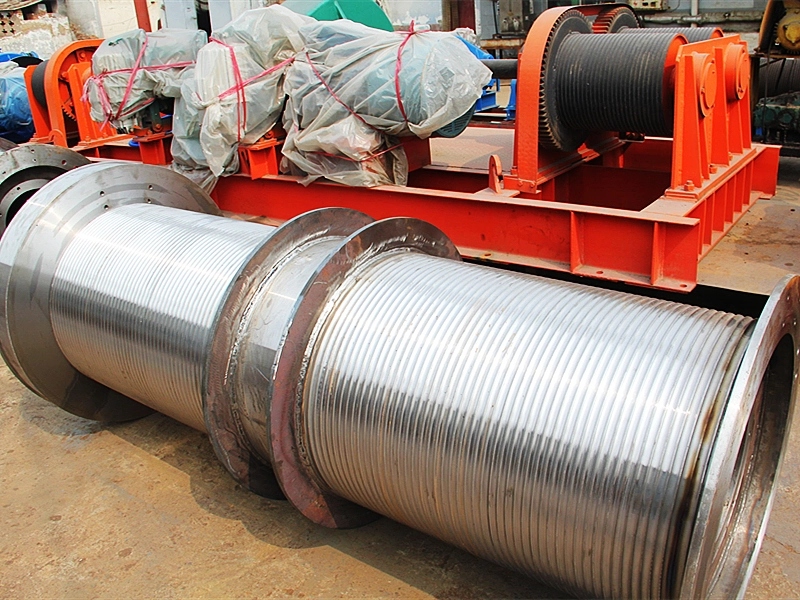

doube winch drum model



doube winch drum model

drums with package



Drums with package

Winch Drum Kits by GT Winch Machinery

Heavy duty steel drums for cranes and winches (OEM Supported)

cable drums

Cable drums for cranes and winches

wire rope drum
heavy duty winch drum
Conveyor Steel Pulley Drum
winch drums

Manufacturing Processes

GT Winch Machinery employs advanced techniques to ensure precision and reliability:

  1. Casting & Forging: Initial shaping using high-pressure casting or forging for structural integrity.
  2. CNC Machining: Precision turning and milling to achieve tight tolerances (±0.05mm).
  3. Welding: Automated MIG/TIG welding for seamless joints.
  4. Surface Treatment: Shot blasting, galvanizing, or epoxy coatings to resist wear and corrosion59.
  5. Quality Testing: Non-destructive testing (NDT) and load trials to meet ISO 9001 standards.

Why Choose GT Winch Machinery?

  • Custom Solutions: Tailored designs for unique operational needs.
  • Advanced Manufacturing: Integration of CNC and automated welding systems.
  • Global Compliance: Certifications for safety and performance.
  • 24/7 Support: Lifetime maintenance and technical assistance.
  • For more details, explore our product catalog or contact GT Winch Machinery’s engineering team for tailored solutions. Engineered for Excellence, Built to Last.

As a professional Industrial & Marine Winch Supplier, GT Winch offers

  • Customizable Solutions – Available in various load capacities, speeds, and configurations to meet specific industrial requirements.
  • High-Quality Manufacturing – Built with strict quality standards to ensure durability, reliability, and long service life.
  • Low Maintenance Requirements – Engineered for minimal maintenance, reducing downtime and operational costs.
  • General winches,marine winches,construction winches.etc available.Welcome to send a free inquiry.
general JM model double drum winch machine
Marine Anchor Windlass winch
mining winch gt winch group
Please feel free to submit your inquiry using the form. We will reply in 8h.

OEM Supported

Email: info@gtwinch.com

  • Type of Winch-General Winch, Marine Winch, Mine Winch, or Other Type

  • Load Capacity-What is the maximum load (in tons or kilograms) the winch needs to handle?

  • Rope / Cable Type-What type of rope or cable will be used? (e.g., steel, synthetic)

  • Power Source-What type of power is required? (e.g., electric, hydraulic, pneumatic, manual)
